pixel.h File Reference

Header file for general pixel manipulation facilities.

#include <banjo/api.h>

Include dependency graph for pixel.h:

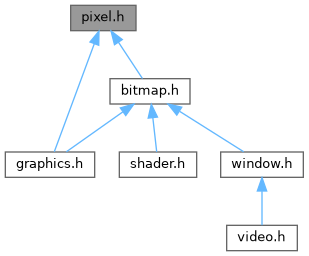

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	BJ_PIXEL_TYPE_INDEX   0x01
	Pixel type: Indexed (palette-based).
#define	BJ_PIXEL_TYPE_BITFIELD   0x02
	Pixel type: Bitfield representation (e.g., RGB565).
#define	BJ_PIXEL_TYPE_BYTES   0x03
	Pixel type: Byte-packed representation (e.g., RGBA8888).
#define	BJ_PIXEL_ORDER_RGB   0x01
	Pixel order: Red-Green-Blue (RGB).
#define	BJ_PIXEL_ORDER_XRGB   BJ_PIXEL_ORDER_RGB
	Pixel order: Same as BJ_PIXEL_ORDER_RGB with unused alpha.
#define	BJ_PIXEL_ORDER_BGR   0x02
	Pixel order: Blue-Green-Red (BGR).
#define	BJ_PIXEL_ORDER_XBGR   BJ_PIXEL_ORDER_BGR
	Pixel order: Same as BJ_PIXEL_ORDER_BGR with unused alpha.
#define	BJ_PIXEL_ORDER_RGBX   0x03
	Pixel order: Red-Green-Blue with padding byte (RGBX).
#define	BJ_PIXEL_ORDER_BGRX   0x04
	Pixel order: Blue-Green-Red with padding byte (BGRX).
#define	BJ_PIXEL_ORDER_ARGB   0x05
	Pixel order: Alpha-Red-Green-Blue (ARGB).
#define	BJ_PIXEL_ORDER_ABGR   0x06
	Pixel order: Alpha-Blue-Green-Red (ABGR).
#define	BJ_PIXEL_ORDER_RGBA   0x07
	Pixel order: Red-Green-Blue-Alpha (RGBA).
#define	BJ_PIXEL_ORDER_BGRA   0x08
	Pixel order: Blue-Green-Red-Alpha (BGRA).
#define	BJ_PIXEL_LAYOUT_1555   0x00
	Pixel layout: 16-bit with 1-bit alpha, 5-bit red, green, and blue (1555).
#define	BJ_PIXEL_LAYOUT_8888   0x01
	Pixel layout: 32-bit with 8 bits per channel (8888).
#define	BJ_PIXEL_LAYOUT_565   0x02
	Pixel layout: 16-bit with 5 bits for red and blue, 6 bits for green (565).
#define	BJ_PIXEL_MODE_MAKE(bpp, type, layout, order)
	Creates a pixel format mode from bits-per-pixel, type, layout, and order.
#define	BJ_PIXEL_MODE_MAKE_INDEXED(bpp)
	Creates a pixel format for indexed (palette-based) pixels.
#define	BJ_PIXEL_MODE_MAKE_BITFIELD_16(layout, order)
	Creates a 16-bit bitfield pixel format.
#define	BJ_PIXEL_MODE_MAKE_BITFIELD_32(layout, order)
	Creates a 32-bit bitfield pixel format.
#define	BJ_PIXEL_MODE_MAKE_BYTES(bpp, order)
	Creates a byte-packed pixel format.
#define	BJ_PIXEL_GET_BPP(fmt)
	Extracts the bits-per-pixel from a pixel format.
#define	BJ_PIXEL_GET_TYPE(fmt)
	Extracts the pixel type from a pixel format.
#define	BJ_PIXEL_GET_LAYOUT(fmt)
	Extracts the pixel layout from a pixel format.
#define	BJ_PIXEL_GET_ORDER(fmt)
	Extracts the pixel order from a pixel format.

Enumerations
enum	bj_pixel_mode {   BJ_PIXEL_MODE_UNKNOWN = 0x00u , BJ_PIXEL_MODE_INDEXED_1 = 0x00000101u , BJ_PIXEL_MODE_INDEXED_4 = 0x00000104u , BJ_PIXEL_MODE_INDEXED_8 = 0x00000108u ,   BJ_PIXEL_MODE_XRGB1555 = 0x01000210u , BJ_PIXEL_MODE_RGB565 = 0x01020210u , BJ_PIXEL_MODE_XRGB8888 = 0x01010220u , BJ_PIXEL_MODE_BGR24 = 0x02000318u }
	Representation of a pixel encoding. More...

Functions
void	bj_pixel_rgb (bj_pixel_mode mode, uint32_t value, uint8_t *p_red, uint8_t *p_green, uint8_t *p_blue)
	Gets the RGB value of a pixel given its 32-bits representation.
uint32_t	bj_pixel_value (bj_pixel_mode mode, uint8_t red, uint8_t green, uint8_t blue)
	Returns an opaque value representing a pixel color, given its RGB composition.
int	bj_compute_pixel_mode (uint8_t bpp, uint32_t red_mask, uint32_t green_mask, uint32_t blue_mask)
	Determine the most suitable bj_pixel_mode from a set of masks.
size_t	bj_compute_bitmap_stride (size_t width, bj_pixel_mode mode)
	Returns the stride used for encoding a bitmaps in Banjo.
