shader.h File Reference

Basic shader-like bitmap manipulation.

#include <banjo/api.h>
#include <banjo/bitmap.h>
#include <banjo/linmath.h>

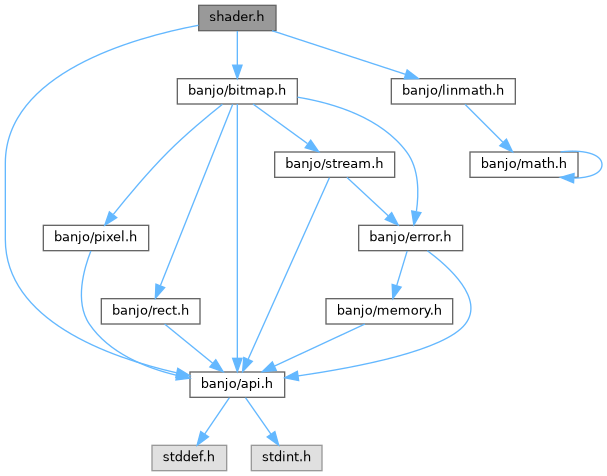

Include dependency graph for shader.h:

Go to the source code of this file.

Macros
#define	BJ_SHADER_STANDARD_FLAGS   (BJ_SHADER_INVERT_Y | BJ_SHADER_CLAMP_COLOR | BJ_SHADER_NORMALIZE_COORDS | BJ_SHADER_CENTER_COORDS)
	Flagset alias for bj_bitmap_apply_shader.

Typedefs
typedef int(*	bj_bitmap_shading_fn_t) (bj_vec3 out_color, const bj_vec2 pixel_coord, void *user_data)
	Function type for a bitmap shading operation.
typedef enum bj_shader_flag_t	bj_shader_flag
	Shader input control flags.

Enumerations
enum	bj_shader_flag_t {   BJ_SHADER_INVERT_X = 0x01 , BJ_SHADER_INVERT_Y = 0x02 , BJ_SHADER_CLAMP_COLOR = 0x04 , BJ_SHADER_NORMALIZE_COORDS = 0x08 ,   BJ_SHADER_CENTER_COORDS = 0x10 }
	Shader input control flags. More...

Functions
float	bj_clamp (float x, float min, float max)
	Clamps a float between a minimum and a maximum value.
float	bj_step (float edge, float x)
	Returns 0.0 if x < edge, else 1.0.
float	bj_smoothstep (float edge0, float edge1, float x)
	Performs smooth Hermite interpolation between 0 and 1 over a range.
float	bj_fract (float x)
	Returns the fractional part of a float.
int	bj_mod (float x, float y)
	Computes a floor-style modulus between two floats.
void	bj_bitmap_apply_shader (bj_bitmap *p_bitmap, bj_bitmap_shading_fn_t p_shader, void *p_data, uint8_t flags)
	Applies a shader function to every pixel in a bitmap.
